Geogrid for Retaining Walls

A 3-foot retaining wall may not always require geogrid, depending on block type, soil conditions, and slope behind the wall. However, many block manufacturers recommend geogrid reinforcement even at this height when soft or loose backfill is present, when the wall supports a slope above it, or when surcharge loads from driveways or structures are expected nearby.

Geogrid embedment depth typically extends 60–70% of the wall height behind the wall face, with a minimum of 3–4 feet. For example, a 6-foot wall generally requires geogrid extending at least 4 feet into the backfill. Specific requirements depend on the wall design, soil type, and manufacturer specifications — always consult project engineering guidelines or a geotechnical specialist.

Biaxial geogrids are most commonly used in retaining wall applications because they provide tensile strength in two directions, effectively interlocking with aggregate backfill. Products from manufacturers like Tensar are widely specified for Geosynthetic-Reinforced Soil (GRS) walls. Your project engineer can determine the appropriate grid strength and spacing based on wall height and soil conditions.

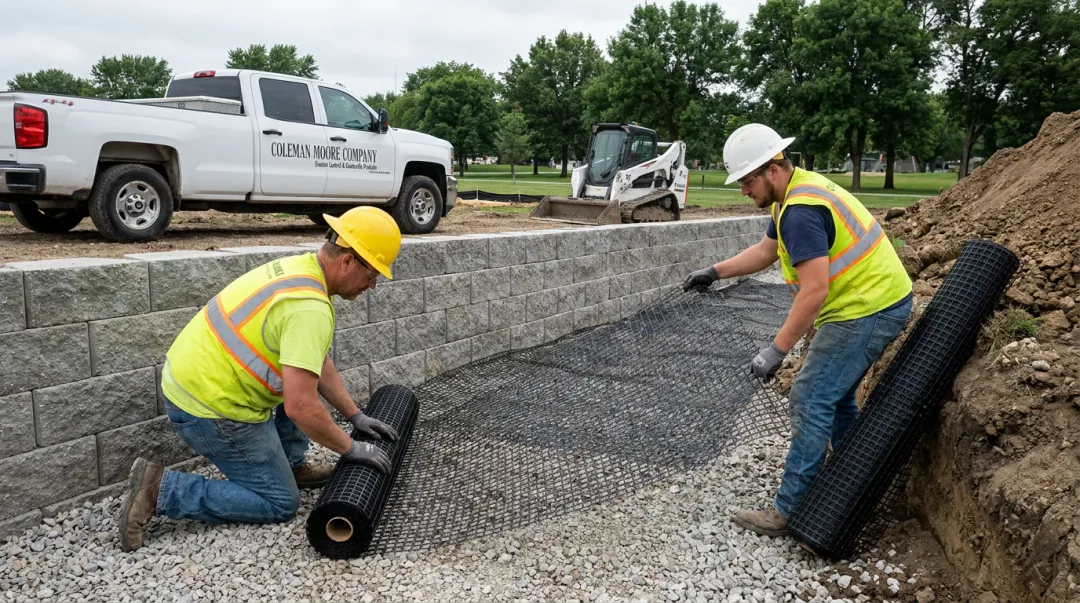

Geogrid layers are placed horizontally within the compacted backfill at specified vertical intervals — typically every 1–2 feet of wall height. Each layer is rolled back from the wall face into the retained soil zone, secured at the wall connection, and then covered with compacted backfill. Proper compaction and grid alignment at each lift are critical to achieving the designed structural performance.

Most geogrids for retaining wall applications are manufactured from polypropylene (PP) or high-density polyethylene (HDPE). These synthetic polymers provide high tensile strength, excellent resistance to UV radiation, and long-term durability against chemicals naturally present in soil. This makes them suitable for permanent retaining wall installations with design service lives of 75 to 100 years.

Yes. The geogrids supplied by Coleman Moore Company meet DOT-compliant specifications and satisfy performance requirements for civil and environmental applications. Products from leading manufacturers such as Tensar and Huesker are routinely specified on state and municipal infrastructure projects throughout Iowa, and Coleman Moore provides full documentation and design support to meet project compliance requirements.
